Single-recording sleep analysis

Source: vignettes/sleep-analysis.Rmd
sleep-analysis.Rmd

This vignette walks through a complete single-recording analysis using the ActTrust validation recording bundled with zeitR. It covers:

  1. Reading the recording
  2. Running the full pipeline
  3. Inspecting nightly sleep statistics
  4. Plotting an actogram
  5. Computing circadian rhythm variables (NPCRA)

1. Read the recording

read_acttrust() parses the raw ActTrust file and returns a zeitr_recording with two slots: $epochs (epoch-level tibble) and $metadata (device and subject information from the file header).

FILE <- system.file("extdata", "input1.txt", package = "zeitR")
TZ   <- "America/Sao_Paulo"

rec <- read_acttrust(FILE, tz = TZ)
rec
#> # A tibble: 76,196 × 8
#>    datetime            activity int_temp ext_temp      ZCMn state offwrist sleep
#>    <dttm>                 <dbl>    <dbl>    <dbl>     <dbl> <dbl>    <dbl> <dbl>
#>  1 2021-05-27 11:10:15     4856     24.2     23.9   6.35e-8     0        0     0
#>  2 2021-05-27 11:11:15     4483     24.4     24.1   1.5 e+0     0        0     0
#>  3 2021-05-27 11:12:15      425     24.4     23.9   5   e-2     0        0     0
#>  4 2021-05-27 11:13:15      873     24.4     23.9   2.67e-1     0        0     0
#>  5 2021-05-27 11:14:15      413     24.4     23.8   1.67e-2     0        0     0
#>  6 2021-05-27 11:15:15      388     24.4     23.8   8.33e-2     0        0     0
#>  7 2021-05-27 11:16:15      561     24.3     23.8   1.17e-1     0        0     0
#>  8 2021-05-27 11:17:15      447     24.3     23.7   5   e-2     0        0     0
#>  9 2021-05-27 11:18:15      196     24.2     23.6   0           0        0     0
#> 10 2021-05-27 11:19:15      192     24.2     23.6   1.67e-2     0        0     0
#> # ℹ 76,186 more rows

The recording spans 52 days at 1-minute epochs — a typical ambulatory study length.

2. Run the full pipeline

run_pipeline() chains all analysis steps in sequence:

  1. Timestamp consistency check
  2. Prepare (temperature clamping, state column initialisation)
  3. Off-wrist detection (Condor bimodal algorithm)
  4. Main sleep period detection (Crespo, 2012)
  5. Nap detection (Crespo, 2012)
  6. WASO scoring (Cole-Kripke, 1992)
result <- run_pipeline(FILE, tz = TZ, quiet = TRUE)
#> ℹ Reading input1.txt ...
#> ✔ [input1] Done. 55 night(s) detected.
result
#>
#> ── zeitr_result: input1 ────────────────────────────────────────────────────────
#> • Source: /home/runner/work/_temp/Library/zeitR/extdata/input1.txt
#> • Epochs: 76196
#> • Nights: 55
#> • Issues: 5

3. Nightly sleep statistics

result$nights contains one row per detected sleep period (main nights and naps). Epoch counts are in minutes for a 1-minute epoch device.

result$nights |>
  mutate(
    bed_time    = format(bed_time,    "%Y-%m-%d %H:%M"),
    get_up_time = format(get_up_time, "%Y-%m-%d %H:%M"),
    tbt_h       = round(tbt  / 60, 1),
    tst_h       = round(tst  / 60, 1),
    eff_pct     = round(eff  * 100,  1)
  ) |>
  select(night, is_nap, bed_time, get_up_time, tbt_h, tst_h, waso, sol, eff_pct) |>
  knitr::kable(
    col.names = c("Night", "Nap?", "Bed time", "Get-up time",
                  "TBT (h)", "TST (h)", "WASO (min)", "SOL (min)", "Eff (%)"),
    align = "clllrrrrr"
  )
Night Nap? Bed time Get-up time TBT (h) TST (h) WASO (min) SOL (min) Eff (%)
1 FALSE 2021-05-27 23:42 2021-05-28 06:54 7.2 6.9 18 0 95.8
2 FALSE 2021-05-28 23:30 2021-05-29 07:16 7.8 7.3 25 0 94.4
3 FALSE 2021-05-30 09:28 2021-05-30 12:58 3.5 3.3 0 8 93.8
4 FALSE 2021-05-30 22:18 2021-05-31 07:58 9.7 9.2 27 0 95.3
5 FALSE 2021-05-31 23:24 2021-06-01 07:14 7.8 7.6 12 0 97.0
6 FALSE 2021-06-02 00:10 2021-06-02 07:19 7.2 6.8 23 0 94.6
7 FALSE 2021-06-02 23:05 2021-06-03 07:47 8.7 8.2 30 0 94.3
8 FALSE 2021-06-04 00:01 2021-06-04 08:29 8.5 7.8 39 0 92.3
9 FALSE 2021-06-04 23:36 2021-06-05 05:20 5.7 5.3 4 9 93.3
10 FALSE 2021-06-06 00:34 2021-06-06 07:30 6.9 6.7 15 0 96.4
11 FALSE 2021-06-07 00:13 2021-06-07 08:39 8.4 7.5 56 0 88.9
12 FALSE 2021-06-07 23:52 2021-06-08 08:53 9.0 8.8 12 0 97.8
13 FALSE 2021-06-08 23:26 2021-06-09 07:17 7.8 7.5 21 0 95.5
14 FALSE 2021-06-10 00:25 2021-06-10 07:55 7.5 7.2 9 9 95.8
15 FALSE 2021-06-11 00:12 2021-06-11 06:34 6.4 6.3 4 0 99.0
16 FALSE 2021-06-12 00:05 2021-06-12 08:33 8.5 7.9 32 0 93.7
17 FALSE 2021-06-12 23:40 2021-06-13 08:10 8.5 8.1 23 0 95.3
18 FALSE 2021-06-13 23:53 2021-06-14 08:07 8.2 7.6 36 0 92.7
19 FALSE 2021-06-15 00:53 2021-06-15 08:20 7.4 7.1 23 0 94.9
20 FALSE 2021-06-15 23:48 2021-06-16 07:09 7.3 7.2 1 0 98.6
21 FALSE 2021-06-17 02:18 2021-06-17 08:14 5.9 5.8 8 0 97.2
22 FALSE 2021-06-18 00:23 2021-06-18 07:42 7.3 7.1 14 0 96.8
23 FALSE 2021-06-19 00:07 2021-06-19 08:42 8.6 8.4 7 1 98.1
24 FALSE 2021-06-19 22:50 2021-06-20 07:45 8.9 8.2 42 1 92.0
25 FALSE 2021-06-20 23:55 2021-06-21 06:56 7.0 6.9 3 0 98.6
26 FALSE 2021-06-21 23:20 2021-06-22 07:35 8.2 7.7 25 0 93.5
27 FALSE 2021-06-23 00:59 2021-06-23 09:04 8.1 7.9 6 0 97.5
28 FALSE 2021-06-24 00:31 2021-06-24 08:22 7.8 7.7 11 0 97.7
29 FALSE 2021-06-24 23:35 2021-06-25 06:36 7.0 6.8 15 0 96.4
30 FALSE 2021-06-25 23:13 2021-06-26 07:51 8.6 7.1 93 0 82.0
31 FALSE 2021-06-27 00:22 2021-06-27 07:03 6.7 6.6 3 0 99.3
32 FALSE 2021-06-27 23:02 2021-06-28 07:03 8.0 7.6 25 0 94.8
33 FALSE 2021-06-29 02:46 2021-06-29 08:00 5.2 4.8 19 0 92.0
34 FALSE 2021-06-30 00:50 2021-06-30 08:13 7.4 7.0 25 0 94.1
35 FALSE 2021-07-01 01:17 2021-07-01 08:45 7.5 7.1 21 0 95.3
36 FALSE 2021-07-01 18:23 2021-07-01 20:57 2.6 1.4 67 0 56.5
37 FALSE 2021-07-01 22:05 2021-07-02 09:28 11.4 10.3 63 0 90.8
38 FALSE 2021-07-02 22:24 2021-07-03 09:35 11.2 9.9 76 0 88.7
39 FALSE 2021-07-03 22:16 2021-07-04 07:14 9.0 8.4 31 0 94.1
40 FALSE 2021-07-04 23:45 2021-07-05 07:32 7.8 7.4 18 0 95.3
41 FALSE 2021-07-05 23:48 2021-07-06 07:40 7.9 7.6 15 0 96.2
42 FALSE 2021-07-07 00:17 2021-07-07 07:48 7.5 7.2 17 0 96.0
43 FALSE 2021-07-07 23:38 2021-07-08 11:04 11.4 10.1 78 0 88.6
44 FALSE 2021-07-08 23:08 2021-07-09 07:20 8.2 7.7 33 0 93.3
45 FALSE 2021-07-09 19:19 2021-07-09 21:23 2.1 1.9 9 0 91.1
46 FALSE 2021-07-09 22:29 2021-07-10 07:56 9.4 8.5 55 0 90.3
47 FALSE 2021-07-10 22:40 2021-07-11 07:20 8.7 8.2 31 0 94.0
48 FALSE 2021-07-12 00:19 2021-07-12 08:52 8.6 8.2 23 0 95.5
49 FALSE 2021-07-13 00:09 2021-07-13 07:40 7.5 7.2 18 0 96.0
50 FALSE 2021-07-13 22:52 2021-07-14 07:35 8.7 7.9 50 0 90.4
51 FALSE 2021-07-14 23:36 2021-07-15 07:40 8.1 7.8 12 0 96.7
52 FALSE 2021-07-15 23:45 2021-07-16 07:45 8.0 7.8 13 0 97.3
53 FALSE 2021-07-16 22:19 2021-07-17 07:48 9.5 8.6 56 0 90.2
54 FALSE 2021-07-17 22:53 2021-07-18 07:28 8.6 7.7 32 0 89.9
55 FALSE 2021-07-18 23:53 2021-07-19 07:57 8.1 7.7 19 0 95.9

Key sleep variables:

Variable Definition
TBT Total Bed Time — duration from lights-out to get-up
TST Total Sleep Time — TBT minus WASO and SOL
WASO Wake After Sleep Onset — wake epochs after first sleep
SOL Sleep Onset Latency — epochs from lights-out to first sleep
Eff Sleep efficiency — TST / TBT

Timestamp issues

if (nrow(result$issues) == 0L) {
  cat("No timestamp issues detected.\n")
} else {
  knitr::kable(result$issues)
}
row datetime issue detail
10146 2021-06-03 12:50:54 gap 2199 s gap before this epoch
20141 2021-06-10 11:43:44 gap 1130 s gap before this epoch
30237 2021-06-17 12:01:57 gap 193 s gap before this epoch
49255 2021-06-30 17:19:12 gap 1215 s gap before this epoch
60894 2021-07-08 19:54:25 gap 2233 s gap before this epoch

4. Actogram

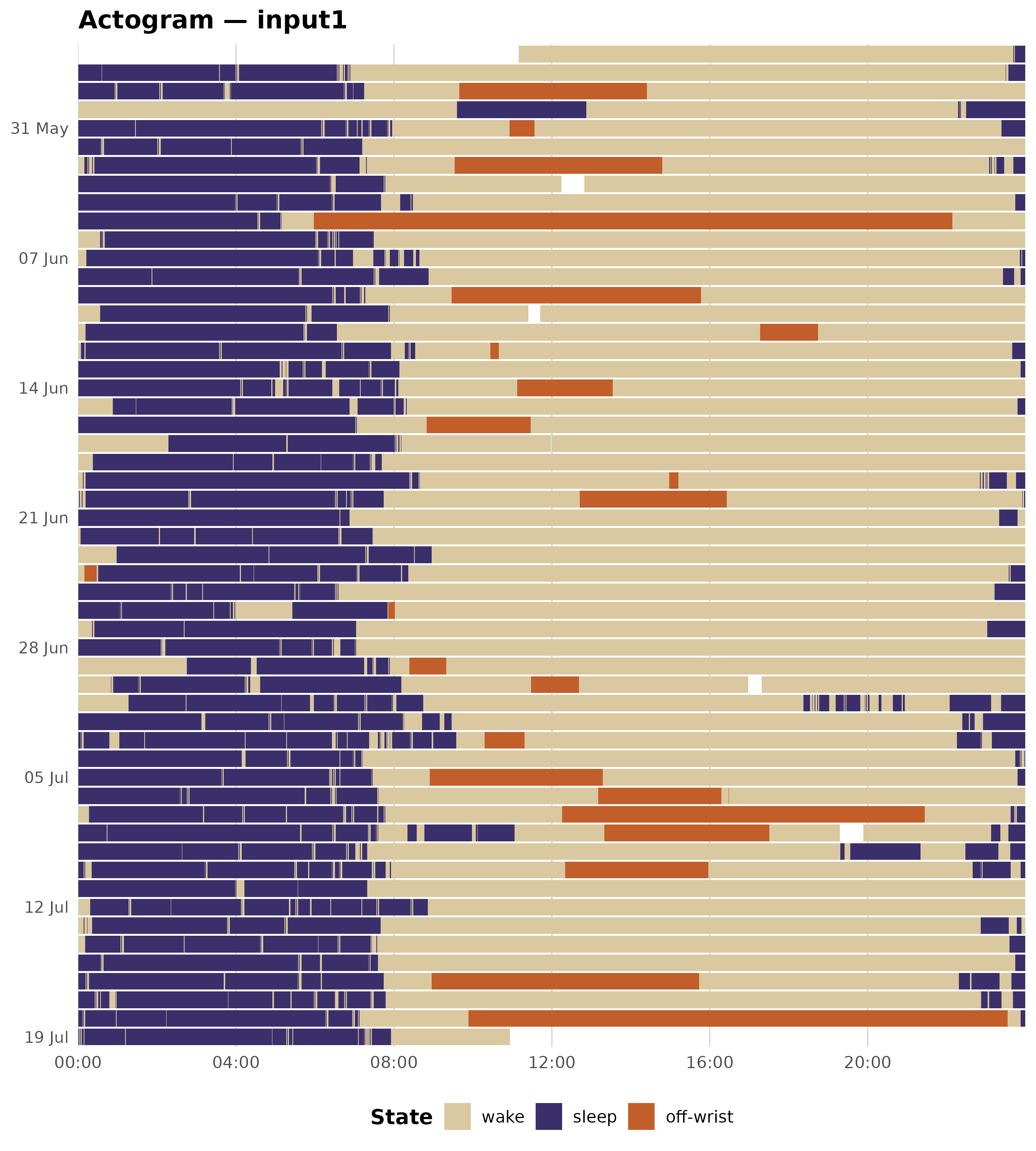

An actogram displays the full epoch-level state sequence as a raster, with one row per day and time-of-day on the x-axis. It is the standard visual summary for actigraphy data.

state_colours <- c(
  "wake"      = "#D9C8A0",
  "sleep"     = "#3B2F6B",
  "off-wrist" = "#C25E2A"
)

d <- result$data |>
  mutate(
    state_label         = label_states(state),
    date                = as.Date(datetime, tz = TZ),
    mins_since_midnight = as.integer(format(datetime, "%H")) * 60L +
                          as.integer(format(datetime, "%M"))
  )

ggplot(d, aes(x = mins_since_midnight,
              y = forcats::fct_rev(factor(date)),
              fill = state_label)) +
  geom_tile(height = 0.9, width = 1) +
  scale_fill_manual(values = state_colours, name = "State", drop = TRUE) +
  scale_x_continuous(
    breaks = seq(0, 23 * 60, 4 * 60),
    labels = function(x) sprintf("%02d:00", x %/% 60L),
    expand = c(0, 0),
    limits = c(0, 24 * 60)
  ) +
  scale_y_discrete(
    breaks = function(x) x[seq(1, length(x), by = 7)],
    labels = function(x) format(as.Date(x), "%d %b"),
    expand = c(0.01, 0.01)
  ) +
  labs(x = NULL, y = NULL, title = paste0("Actogram \u2014 ", result$subject_id)) +
  theme_minimal(base_size = 13) +
  theme(
    panel.grid.major.x = element_line(colour = "grey80", linewidth = 0.3),
    panel.grid.minor.x = element_blank(),
    panel.grid.major.y = element_blank(),
    legend.position    = "bottom",
    legend.title       = element_text(face = "bold"),
    plot.title         = element_text(face = "bold"),
    axis.text.y        = element_text(size = 10)
  )
#> Warning: Removed 53 rows containing missing values or values outside the scale range
#> (`geom_tile()`).

The recording shows a consistent nocturnal sleep pattern (dark purple bands centred around midnight) with a brief off-wrist episode visible in the first week.

5. Circadian rhythm analysis (NPCRA)

compute_npcra() derives the standard non-parametric circadian rhythm variables from the raw activity time series.

npcra <- compute_npcra(rec)

npcra |>
  select(-participant_id) |>
  mutate(across(everything(), as.character)) |>
  tidyr::pivot_longer(everything(), names_to = "Variable", values_to = "Value") |>
  mutate(Description = c(
    "Interdaily stability (0\u20131; higher = more consistent rhythm)",
    "Intradaily variability (\u22650; higher = more fragmented rhythm)",
    "Relative amplitude (0\u20131; contrast between M10 and L5)",
    "Mean activity during the least-active 5 h window",
    "Clock time of the L5 window onset (hh:mm)",
    "Mean activity during the most-active 10 h window",
    "Clock time of the M10 window onset (hh:mm)",
    "Recording duration in days",
    "Total number of epochs"
  )) |>
  knitr::kable(col.names = c("Variable", "Value", "Description"),
               align = "lrl")
Variable Value Description
IS 0.2156 Interdaily stability (0–1; higher = more consistent rhythm)
IV 0.9994 Intradaily variability (≥0; higher = more fragmented rhythm)
RA 0.9411 Relative amplitude (0–1; contrast between M10 and L5)
L5 116.4156 Mean activity during the least-active 5 h window
L5_onset 01:00 Clock time of the L5 window onset (hh:mm)
M10 3837.8615 Mean activity during the most-active 10 h window
M10_onset 08:00 Clock time of the M10 window onset (hh:mm)
n_days 52.91 Recording duration in days
n_epochs 76196 Total number of epochs

For a healthy adult with a regular sleep-wake schedule you would expect:

  • IS > 0.6 (consistent 24 h rhythm)
  • IV < 1.0 (low fragmentation)
  • RA > 0.8 (high contrast between rest and activity)
  • L5 onset around 01:00–04:00 (nocturnal rest trough)
  • M10 onset around 08:00–12:00 (morning activity peak)
